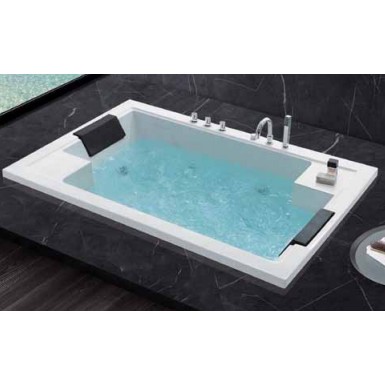

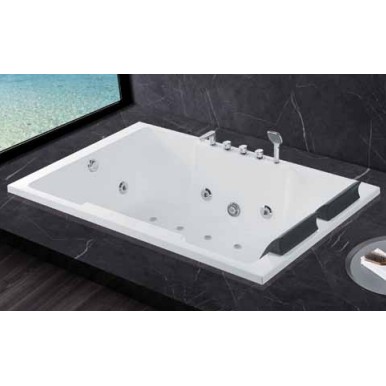

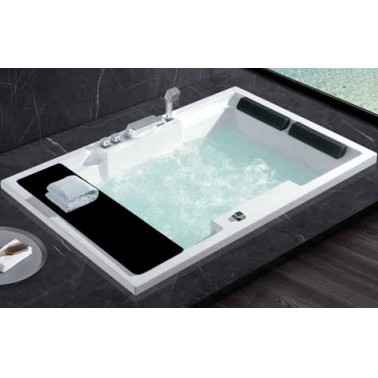

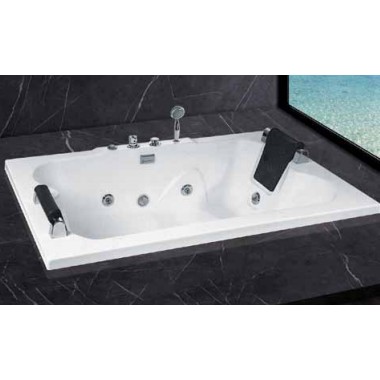

Embedded Bathtub

Embedded bathtub | High density carbon steel skeleton+nano crystalline composite layer, ultra-thin edge realizes wall cylinder integration, 500kg load-bearing capacity x zero leakage embedded bathroom benchmark

1. Military grade skeleton system, with violent load-bearing stability like a rock
Triple mechanical architecture:
Main skeleton: 2.5mm thick 304 carbon steel frame, with a compressive strength of 800MPa (traditional cast iron bathtub ≤ 400MPa);
Support net: honeycomb basalt fiber net, disperses pressure while reducing shock and noise;
Connection: Titanium alloy expansion bolt, seismic grade up to IX (national standard VII);
Ultimate Load Capacity Verification:
500kg counterweight static pressure for 72 hours, cylinder deformation ≤ 0.2mm;
Drop a 30kg heavy object from a height of 1.8m, with no cracks or dents at the impact point.

2. Invisible edge closure, ultimate spatial fusion
Nanocrystalline composite layer:
3mm ultra-thin surface layer, with a Mohs hardness of level 6, resistant to metal scratches and chemical corrosion;
Support seamless bonding of rock slab/marble/micro cement veneer, with edge gaps ≤ 0.5mm;
Dynamic sealing system:
Polymer memory adhesive strip+hydraulic self compensating structure, suitable for wall deformation within 2mm;
The 3Bar pressure of the shower water gun continuously impacts the joint, with zero leakage for 24 hours.

3. 70 ℃ constant temperature black technology, doubling bath duration plan
Design of vacuum insulation layer:
The double-layer hollow structure is filled with aerogel, and the water temperature drop rate is ≤ 0.3 ℃/min (traditional bathtub ≥ 1 ℃/min);
45 ℃ water temperature can sustain insulation for 90 minutes, improving the winter bathing experience by 200%;
Intelligent thermal sensing system:
Embedded temperature sensor, real-time display of water temperature and warning of low temperature freezing and cracking risks;
Support external constant temperature circulation system to achieve hot spring level hydraulic massage.

4. Quick installation of cleaning system, 1-hour renovation of bathroom
Non dismantling and installation technique:
Adjustable telescopic frame (suitable for 800-1500mm wall spacing), directly covering and installing old ceramic tile walls;
Laser positioning device+modular assembly, single person operation can be completed in as fast as 60 minutes;
Zero dead angle drainage design:
Bottom of the basin with a self-cleaning slope of 7 ° and vortex acceleration drainage outlet, with a drainage speed of ≥ 2.5L/s;
Quick detachable filter box, clean hair and impurities in 3 seconds by hand.

Full scenario solution:
Old house renovation: The expandable skeleton directly covers the old tiles, and the renovation avoids smashing the walls;
Hotel clubhouse: IPX8 waterproof+500kg load-bearing, daily high-frequency use without maintenance;
Minimalist residence: ultra-thin edge closure+invisible drainage outlet, achieving visual integration of wall and cylinder;
Outdoor Soup House: -25 ℃ anti freezing formula, snow scenery hot spring bath is not afraid of low temperature.

Four step high-speed installation:
Skeleton spacing adjustment: The telescopic carbon steel frame is adapted to the wall spacing on site;
Sealing pre installation: memory rubber strip embedded in the seam groove;
Cylinder body fastening: Double directional locking with titanium alloy bolts;
Decorative edge finishing: rock slab/micro cement bonding, filling gaps with grout ≤ 1mm.

Extreme Violence Test:
A 1-ton forklift crushed the edge of the cylinder body without any structural fracture or displacement;
84 disinfectant+toilet cleaner mixed solution soaked for 168 hours, with no corrosion on the surface;
Embedded Bathtub - Reconstructing Bathroom Space with Engineering Mechanics, Making Every Immersion a Deep Dialogue between Architecture and Body!
