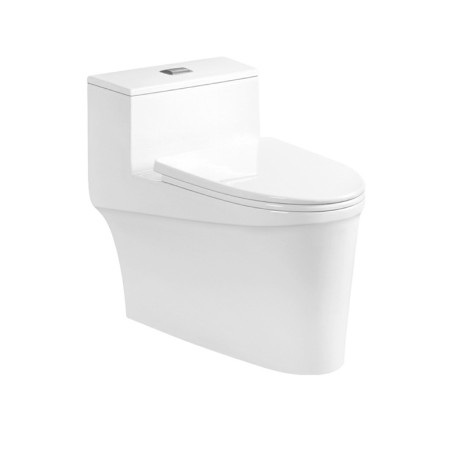

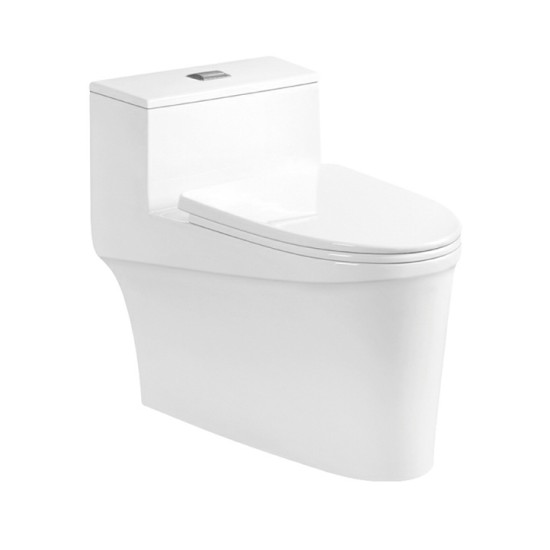

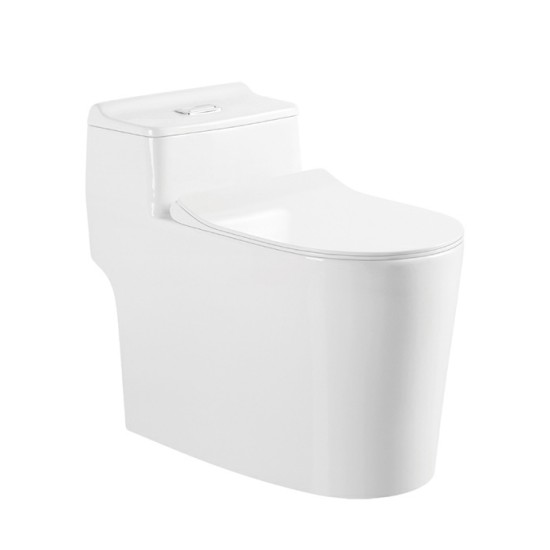

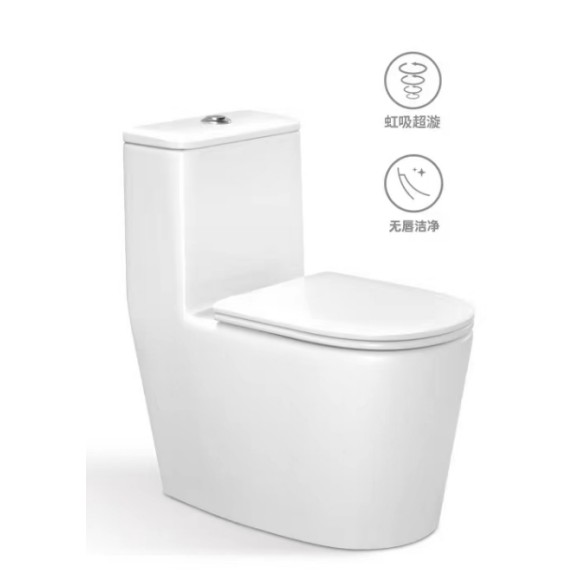

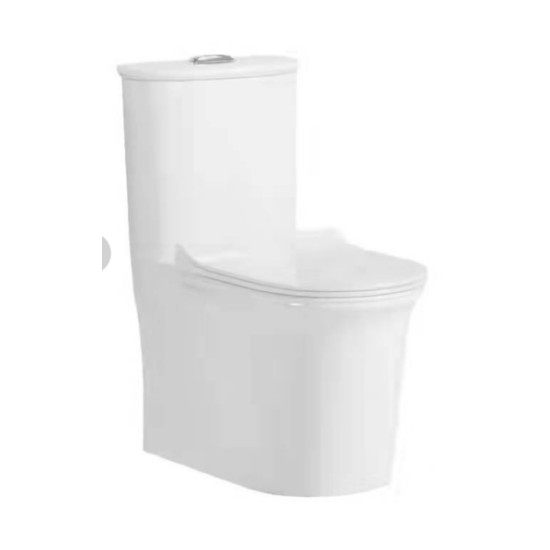

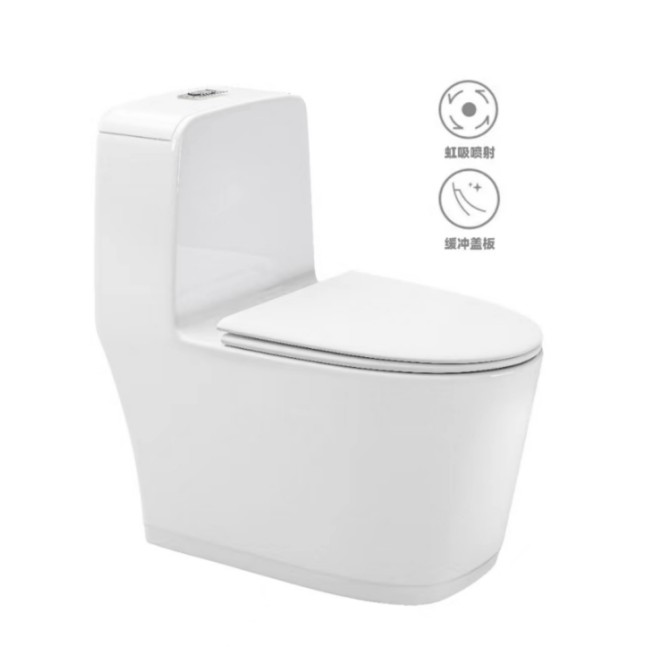

Whirlpool Siphon Water-Saving Toilet

[Static Whirlpool Siphon · Long term Anti pollution] Whirlpool siphon water-saving toilet | 360 ° ring wall pressurization+nano self-cleaning glaze surface, 50mm ultra wide pipeline suitable for low water pressure households, silent and water-saving dual effect in one

1. Siphon boosting engine, doubling the impact of low water pressure
360 ° Vortex Boosting Technology:
The spiral diversion design of the water injection port creates a strong vortex siphon effect, with a 40% increase in impulse compared to ordinary siphons;
0.1MPa ultra-low water pressure start-up (national standard ≥ 0.2MPa), suitable for old residential areas/high-rise buildings;
Dual speed water-saving flushing:
Large flushing mode: 4.8L water volume is used to flush solid pollutants (national standard ≤ 6L);
Small flushing mode: 3.5L water volume for treating liquid waste, saving 18 tons of water annually;
50mm ultra wide straight pipe, with no necking design throughout the entire process, providing unobstructed flushing for toilet paper/wet wipes.

2. Nano self-cleaning glaze surface, resistant to stains for ten years without scaling
Five layer high-temperature glaze process:
Bottom high-density ceramic+silver ion antibacterial layer+nano hydrophobic coating, reducing stain adhesion by 90%;
The Mohs hardness of the glazed surface reaches level 6, and the steel wire ball is repeatedly scrubbed without scratches;
Full pipeline glazing technology:
The inner wall of the sewage pipeline is covered with a self-cleaning glaze surface at 360 °, with a roughness Ra ≤ 0.2 μ m (national standard ≤ 0.8 μ m);
S-shaped water trap splash proof design, with a water seal height of 55mm (national standard ≥ 50mm), to isolate odorous flying insects.

3. Silent vortex design, unable to sleep when using the toilet at night
Silent water film buffer:
At the moment of flushing, the air cushion wraps around the water flow, and the noise of falling into the water is ≤ 40 decibels (traditional straight flush toilets ≥ 65 decibels);
Slowly lowering cover plate+silicone damping hinge, reducing opening and closing impact sound by 80%;
Vortex flow stabilization technology:
The diversion holes are evenly distributed, and the water flow spirals down along the wall to avoid direct "blasting sound";
The foam layer of the trap is blocked to prevent the noise of the sewer pipe from being transmitted back.

4. Humanized structural design, suitable for all age groups
Ergonomic seat ring:
Widen the seat ring (front end width 220mm), fit the curve of the buttocks, and prevent leg numbness after prolonged sitting;
Seat height of 420mm (suitable for Asian height), making it easier for the elderly/children to get up;
Quick detachable structure:
Modular design of internal components in the water tank, quick replacement of inlet/outlet valves within 3 minutes;
One click disassembly of the cover plate, tool free cleaning without dead corners.

3-step minimalist installation:
Pit distance measurement: supports 305mm/400mm dual pit distance adaptive (± 15mm adjustable);
Sealing reinforcement: equipped with double flange rings (rubber+silicone), leak proof and odor proof dual insurance;
Water level calibration: Press type water level regulating valve, suitable for different household water pressure environments.

Full scenario solution:
Small sized bathroom: compact design (total length ≤ 680mm), door opening does not collide;
Same floor drainage system: 50mm diameter perfectly matches PVC-110 sewage pipe, no need for displacement device;
Commercial high-frequency use: 100000 flushing tests, with a shock attenuation rate of less than 5%.

Extreme Violence Test:
The ceramic body has no cracks after 24 hours of static pressure with a weight of 80kg;
Continuous rinsing with high temperature water at 50 ℃ for 1000 times resulted in no discoloration of the glaze surface;
Vortex siphon water-saving toilet - achieved long-term cleanliness through precise research in fluid mechanics, allowing every drop of water to achieve ultimate efficiency!
